Pair, Twin, Triple, double twin

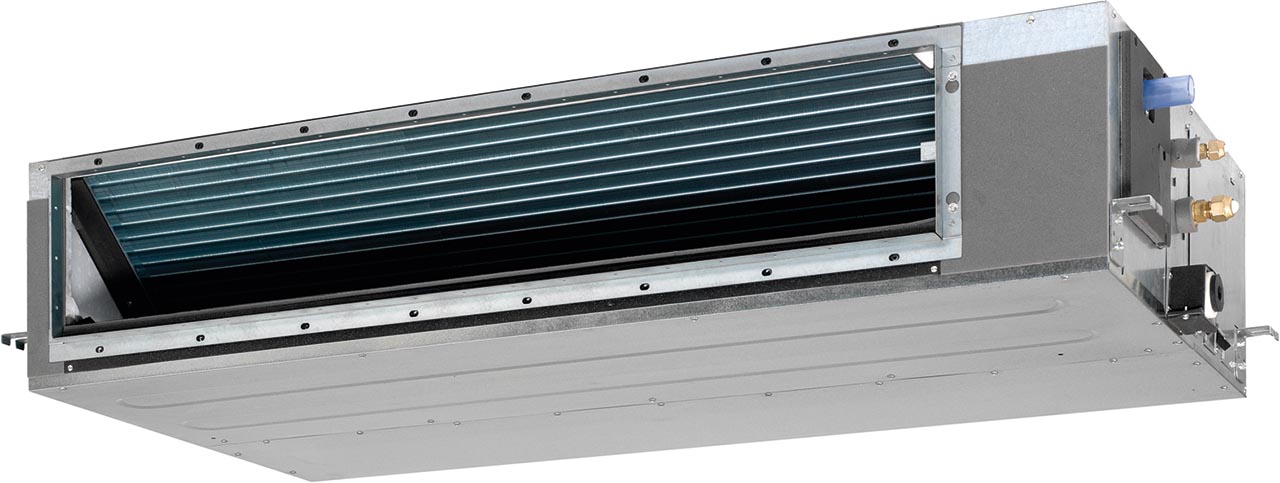

Seasonal Smart - FBQ-D / RZQG-L(8)Y1

Product Features

Top efficiency in the market! Energy label up to A++
Top efficiency: - energy labels up to A++ in both cooling and heating - compressor that offers substantial efficiency improvements - control logic that optimises efficiency at the most frequently encountered operating conditions and that optimises
Slimmest unit in class, only 245mm (300mm built-in height) and therefore narrow ceiling voids are no longer a challenge
The perfect balance in efficiency and comfort thanks to Variable Refrigerant Temperature: top seasonal efficiency throughout most of the year and quick reaction speed on the hottest days.
Lowest sound levels in the market: down to 25dBA!
Suits high sensible, infrastructure cooling applications
Medium external static pressure up to 150Pa facilitates using flexible ducts of varying lengths
Replace existing systems with R-32 technology without needing to replace the piping
Extended operation range down to -20°C in heating and down to -15°C in cooling
Possibility to change ESP via wired remote control allows optimisation of the supply air volume
Discretely concealed in the ceiling: only the suction and discharge grilles are visible
With a gas cooled PCB reliable cooling is guaranteed as it is not influenced by ambient temperature
Maximum piping length up to 75m, minimum piping length is 5m.
Optional fresh air intake
Outdoor units for pair, twin, triple, double twin application
Reduced energy consumption thanks to specially developed DC fan motor and drain pump
Daikin outdoor units are neat, sturdy and can easily be mounted on a roof or terrace or simply placed against an outside wall
No optional adapter needed for DIII-connection, link your unit into the wider building management system.
Flexible installation: air suction direction can be altered from rear to bottom suction and choice between free use or connection to optional suction grilles
Standard built-in drain pump with 625mm lift increases flexibility and installation speed
Units optimized for seasonal efficiency give an indication on how efficient an air conditioner operates over an entire heating or cooling season.

Benefits

Home leave operation

Maintains the indoor temperature at your specified comfort level during absence, thus saving energy
Inverter

Inverter compressors continuously adjust compressor speed to actual demand. Fewer power-consuming starts and stops result in decreased energy consumption (up to 30%) and more stable temperatures.
Fan only

The unit can be used as fan, blowing air without heating or cooling.
Auto cooling-heating changeover

Automatically selects heating or cooling mode to achieve the set temperature.
Whisper quiet

Daikin indoor units are whisper quiet. Also the outdoor units are guaranteed not to disturb the quiet of the neighbourhood.
Fan speed steps (3 steps)

Allows to select up to the given number of fan speed.
Dry programme

Allows humidity levels to be reduced without variations in room temperature.
Air filter

Removes airborne dust particles to ensure a steady supply of clean air.
Weekly timer

Can be set to start heating or cooling anytime on a daily or weekly basis.
Infrared remote control (optional)

Starts, stops and regulates the air conditioner from a distance.
Wired remote control (optional)

Starts, stops and regulates the air conditioner.
Centralised control (optional)

Starts, stops and regulates several air conditioners from one central point.
Auto-restart

The unit restarts automatically at the original settings after power failure.
Self diagnosis

Simplifies maintenance by indicating system faults or operating anomalies.
Drain pump kit (standard)

Facilitates condensation draining from the indoor unit.
Infrastructure cooling

Remove in a reliable, efficient and flexible way the heat constantly generated by the IT and server equipment to ensure maximum uptime while offering the best return on investment.
Twin/triple/double twin application

2,3 or 4 indoor units can be connected to only a single outdoor unit even if they have different capacities. All indoor units operate within the same heating or cooling mode from one remote control.
Multi model application

Up to 5 indoor units can be connected to a single outdoor unit, even if they have different capacities. All indoor units can individually be operated within the same heating or cooling mode.
VRV for residential application

Up to 9 indoor units (even different capacities and up to 71 class) can be connected to a single outdoor unit. All indoor units can individually be operated within the same mode.
